Plastic Glazed Roof Tile Production Engineering Drawing

PVC Plastic Roof Tile Production Line Introductioin

This roofing tile production line introduces the latest co-extrusion and control technology to produce durable high quality roof tile sheet with kinds of colors and surface pattern, and the main production procedures are devided into 3 parts below:

1,Materials Mixing.

Due to our reliable high speed hot and cool group mixer, the raw materials such as PVC powder,calcium carbonate, cloride PE,pre-wax,stearic acid, compound stabilizer,ACR, Paraffin and ASA are completely mixed, which is also an key part in sheet quality control, because the improper mixing would lead to sheet deficiency problem like crack,unflat,and bump.

2,Extrudsion.

In this stage, the completely mixed raw materials are fully plasticized in a perfect status, and transferred to the sheet die mould by extruder pressure, in which the sheet thickness can be adjusted between 1mm to 3mm.

3,Forming and cutting.

In the final stage, the hot PVC ASA sheet is hauled off to a forming machine with glazed mould, in which the wind generated by fan to blown into a tunnel to cool down the temperature of glazed mould, and then the formed glazed sheet continues to be hauled off to a cutting machine, where a certaiin length of the glazed roof sheet is cut as per PLC controlled, finally the glazed roof sheet are piled on the stacker table which is ready to be packed.

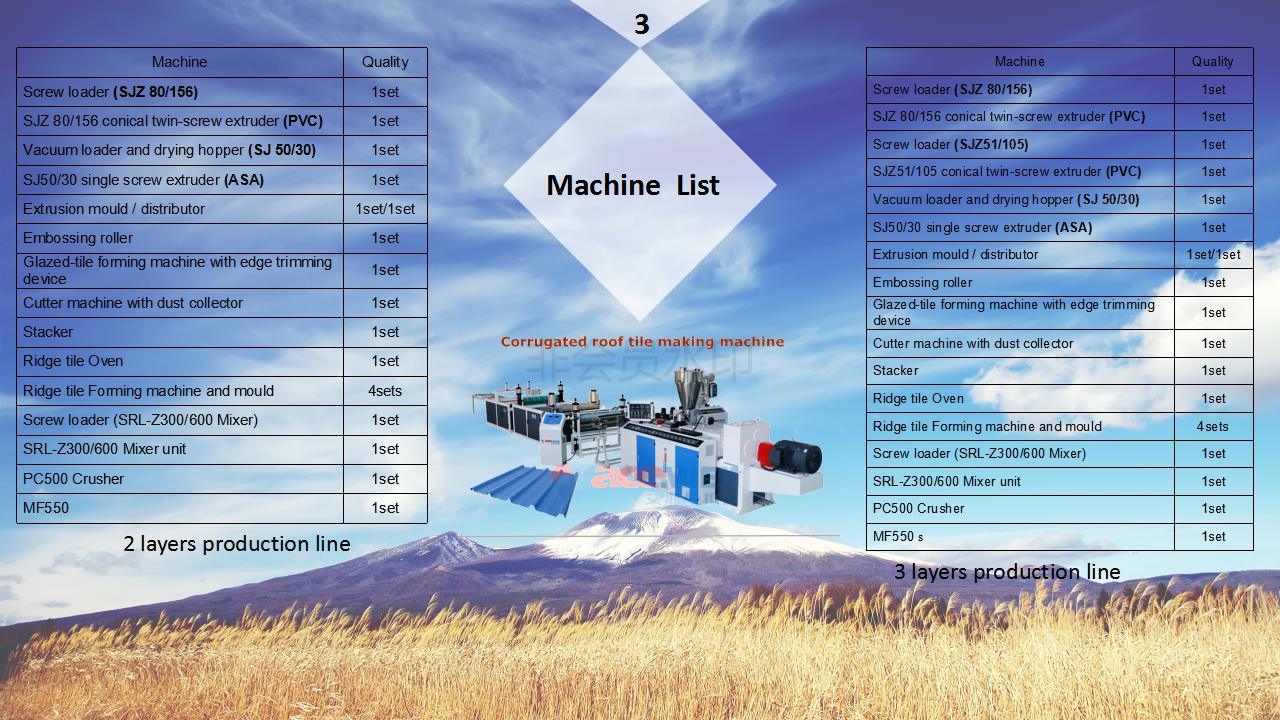

Detailed Machine List

PVC roof tile advantage

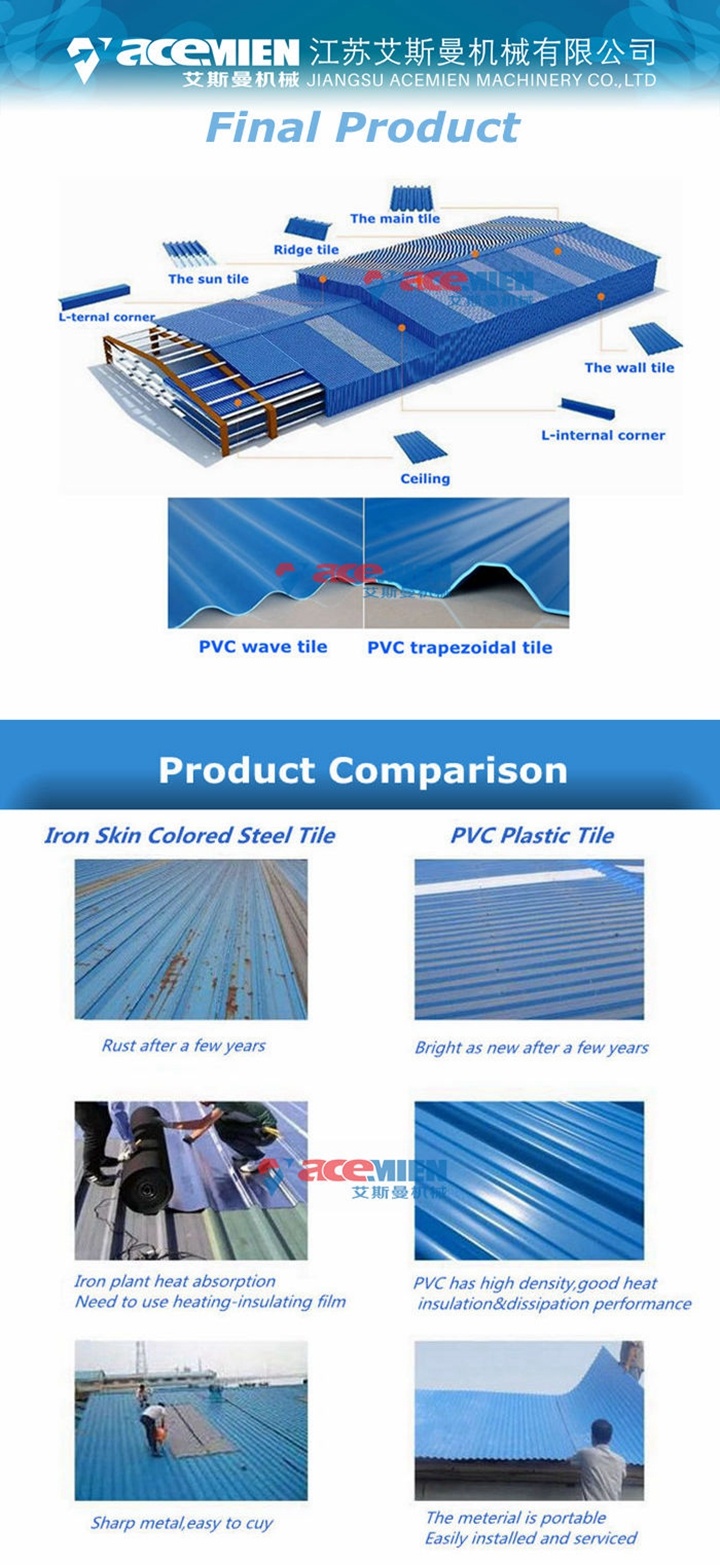

1,Surfance color keep almost fresh by 25 year.

2,Nice appearance wiith bamboo shape,make it an acient and elegant roofing.

3,Anti-corrusion,rusty never take place on plastic roofing.

4,Heat resistant due to low conductivity of the PVC material especially the surface layer made of ASA engineering plastic.

5,Used as durable weather sheet, and also for counterpart of wall panel sometimes.

6,Less noise when it rains and winds.

7,Heavy load capacity even to heavy snow,rain and falling objects, strong enough to hold against Typhoon.

8,NO leaking.

9,Easy to install and transport due to light weight.

10,Environment freindly, it can be recycled by plastic crusher to feed as waste raw material ,so in this way it also reduce manufacturing cost as the recycled PVC powder can replace the new PVC powder under certain circumstances.

11,Anti Ultraviolet.

Plastic roof tile machine advantage from our factory

1,We have economic and special formulation for roof tile production.

2,We have app insert for safety warning and extruder control.

3,Our production line of pvc roof tile is designed for nice appearance and running in steady status,we own several domestic patents.

4,We committe to provide technical support for production line all life time.

5,We sell 95 sets of this production line each year as our best seller machine.

6,Our engineer are experienced enough for installation and debugging.

7,We Acemien Machinery China is famous for plastic extruding machine and meltblown machine.
