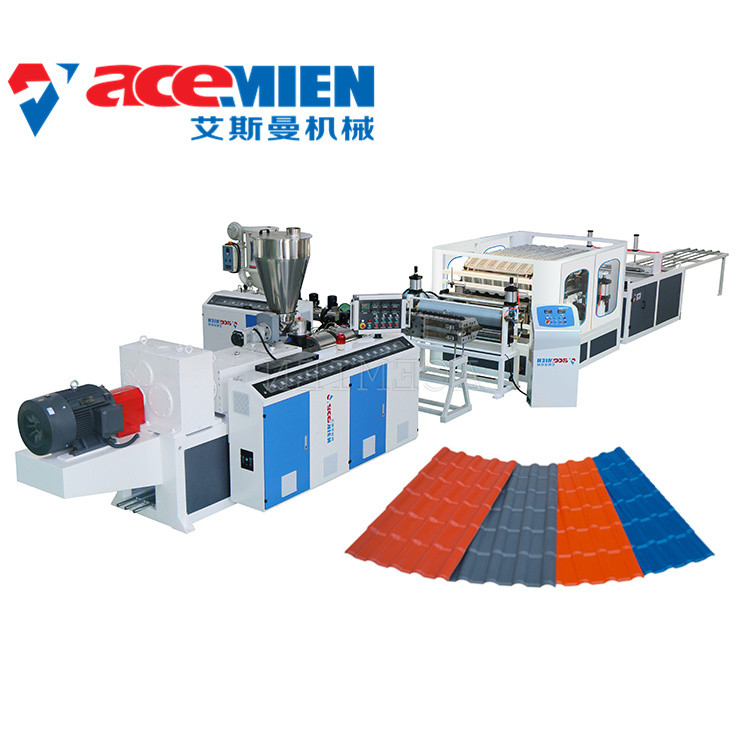

High effeiciency Recycled PVC plastic roof tile machine
Machine name: Plastic PVC Composite Roof Tile machine
Finshed product :
Plastic roofing, PVC composite roofing ,Plastic corrugated roofing,thickness of the 1mm-3mm,length can be customized
Plastic PVC roof tile machine is manufactured based on 2 or 3 or 4 layer co-extrusion technology by one-time processing,which well combine the different functions of raw materials(PVC+ASA) so that the tile can be anti-corrosive, fire retardant, eco-friendly, more durable, tenacious, easy to install and move, light weight as well as cost effective in installation (as less steel and less overlap), as per the efficiency and benefits it provides.
Apart from its numerous benefits, its salient features include heat insulation up to 35% (highly energy efficient) and it can withstand temperature up to 70 degrees Celsius to - 40 degrees Celsius which is very much suitable for YOUR MARKET.
| Main Machine List |
| No. | Name | Qty. | Remark |
| 1 | Screw loader for SJZ 80/156 extruder | 1 | |
| 2 | SJZ 80/156 conical twin-screw extruder | 1 | For the PVC layer |
| 3 | Vacuum loader for SJ50 extruder | 1 | |
| 4 | drying hopper for SJ50 extruder | 1 | |
| 5 | SJ50/30 single screw extruder(ASA) | 1 | For the ASA layer |
| 6 | 1300mm Mould unit | 1 | Product width:1050mm |
| 7 | Distributor | 1 | |
| 8 | Cutter | 1 | |
| 9 | Stacker | 1 | |
| Equipment for corrugated roof tile |
| 10 | 1050mm Calibration mould with trimming device and haul off unit | 1 | For corrugated roof tile product |
| 11 | Moulds of top ridge tile with forming machine | 1 |
| Equipment for Spanish roof tile |
| 12 | Embossing roller | 1 | For Spanish roof tile product |
| 13 | 1050mm Forming machine with trimming device | 1 |
| 14 | Moulds of top ridge tile ,hip ridge tile , three way and end ridge tile with forming machine | 4 |
| Auxiliary equipment | |
| 15 | Ridge tile Oven | 1 | | |
| 16 | SRL-Z300/600 Mixer unit | 1 | Capacity : 450-550kg/h | |
| 17 | Screw loader for SRL-Z 300/600 Mixer | 1 | | |
| 18 | Crusher | 1 | Power: 11kw | |
| 19 | Pulverizer | 1 | Power: 45kw | |

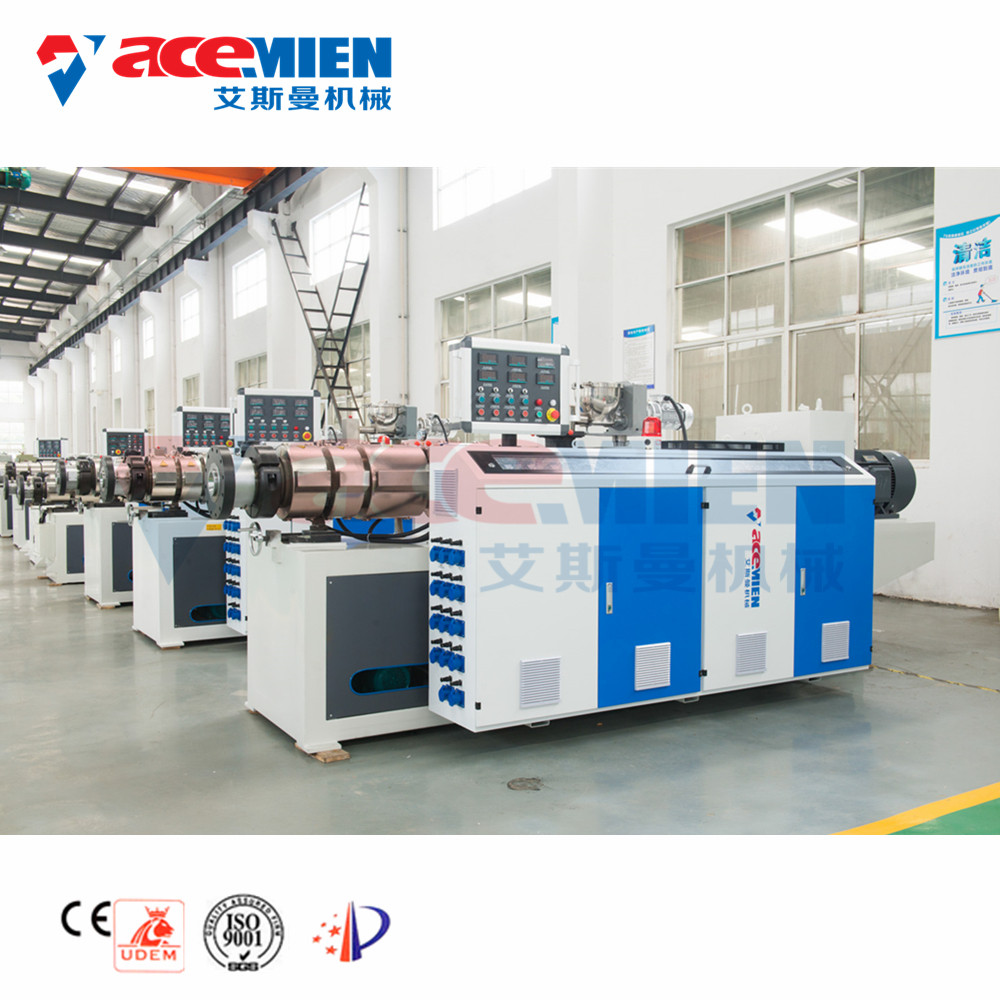

Extrusion system
Name: SJZ80/156 Conical twin screw extruder
Brand: ACEMIEN
Original: China
Technical parameters:
a.Main motor :55kw Siemens Brand.
b.Inverter:ABB
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d. Vacuum pump : Double station.

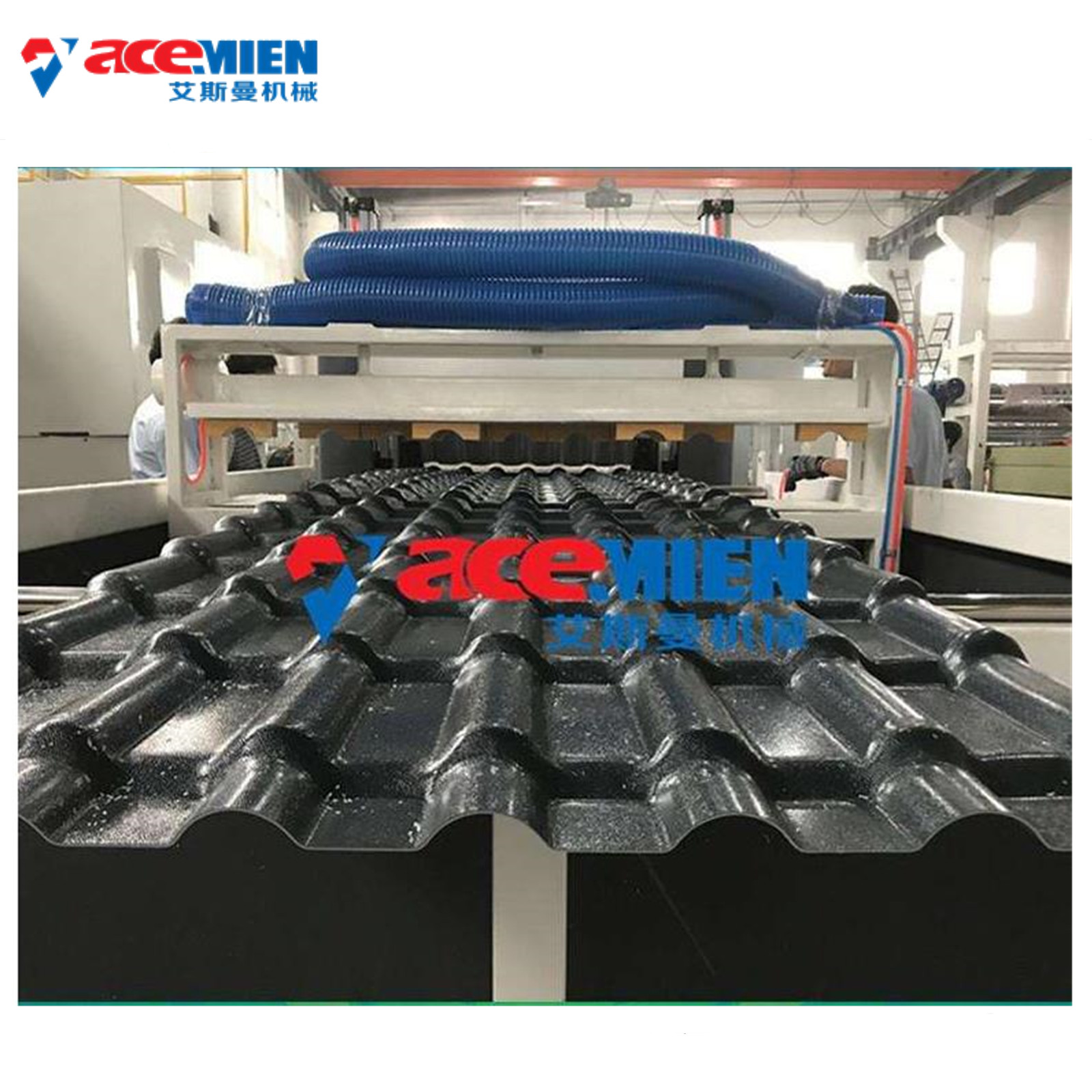

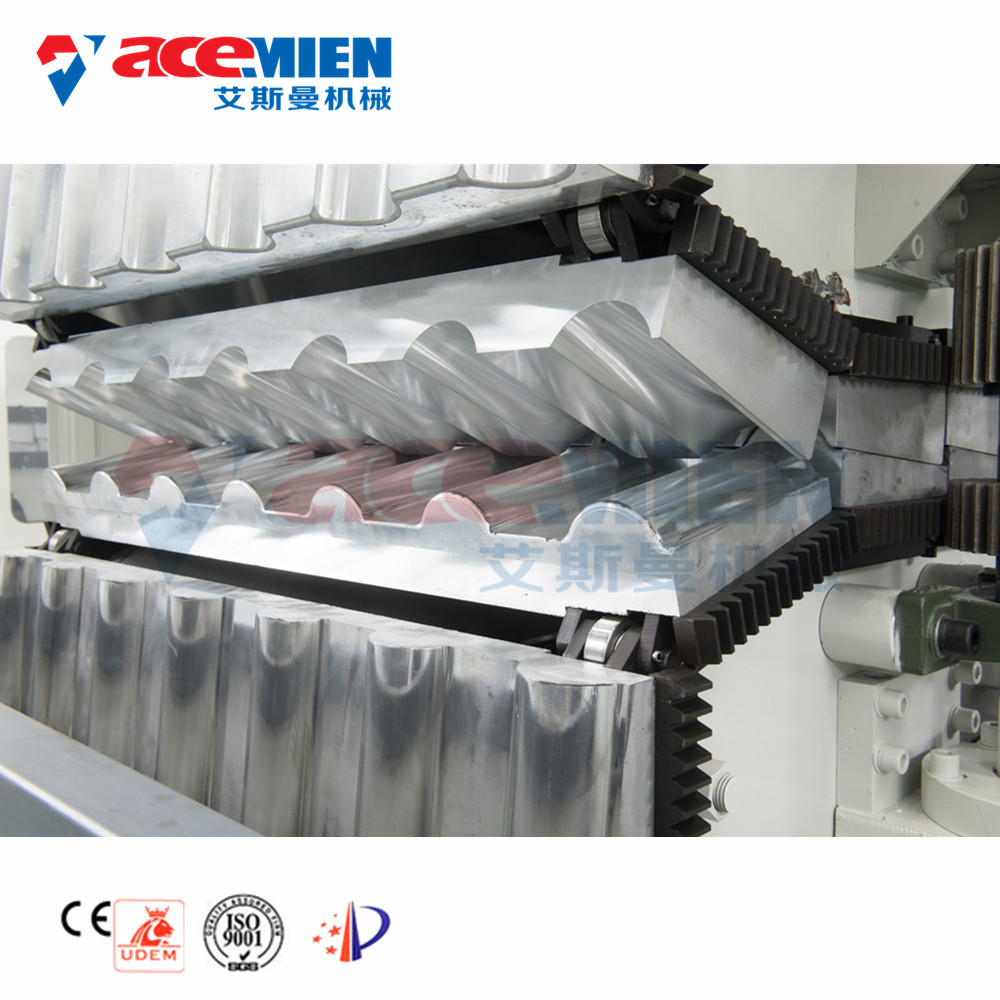

Mould part
Name: Extrusion mould
Brand: ACEMIEN
Original: China
Technical parameters:
a.Clothes tack runner,
b.Mirror polishing Cr plating,
c.Three dimensional flow simulation software design.
Final product
